SR Carriage plates

Click on photos for an enlargement where available.

Plates cast in resin - 22 June 2010 - Richard Salmon Plates from S5542 - 22 June 2010 - Richard Salmon

back of wooden plaque

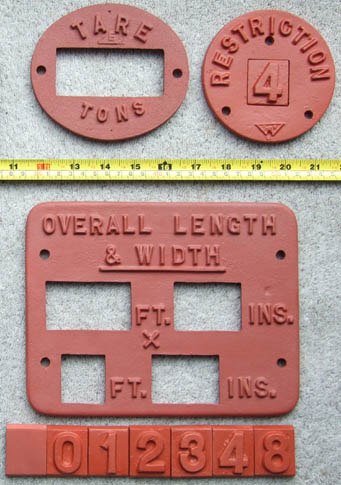

The plates above are resin replicas which I have cast from originals (there is no shrinkage in the casting process).

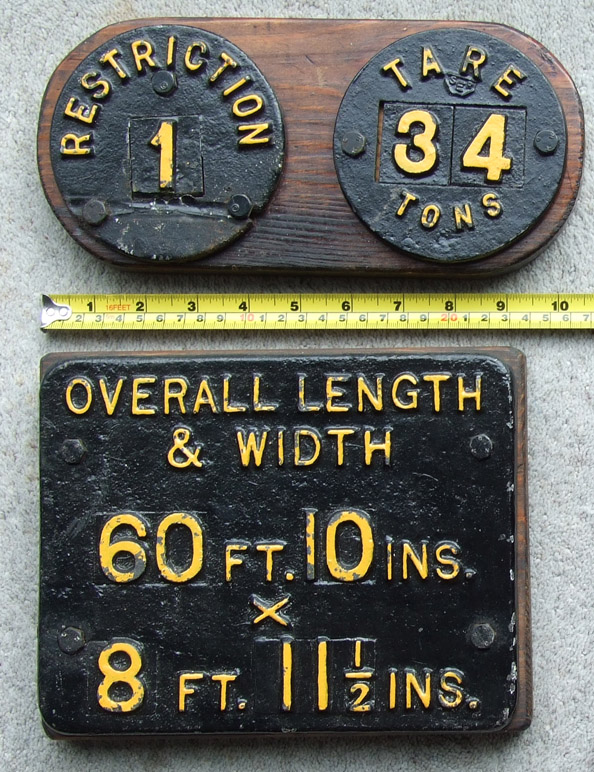

Above right are the plates from S5542S, one of the 1925 'Thanet' composites running in set 424. The coach was withdrawn May 1959. It ended up as Marine Shop's Canteen, Newhaven, according to the annotation on the back of the wooden backing to the plate (right).

The dimensions are:

Below are some coach ends on the Bluebell Railway, showing how the plates are positioned.
Plates on Maunsell 6686 - 31 Aug 2009 - Richard Salmon Plates on Maunsell 1309 - 31 Aug 2009 - Richard Salmon

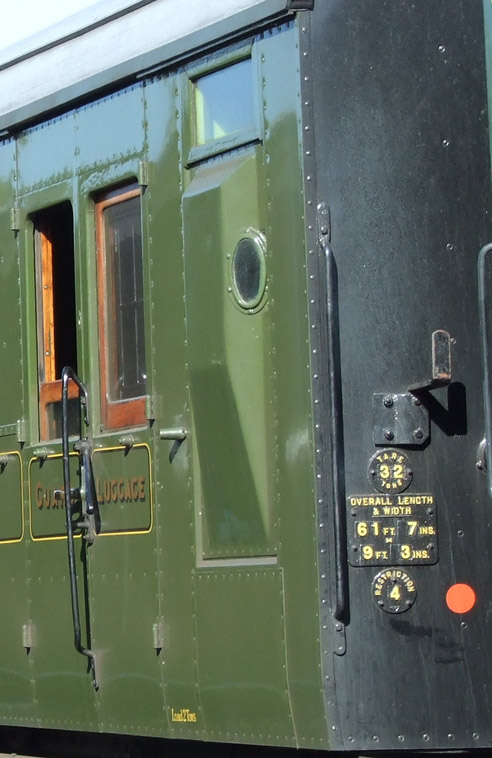

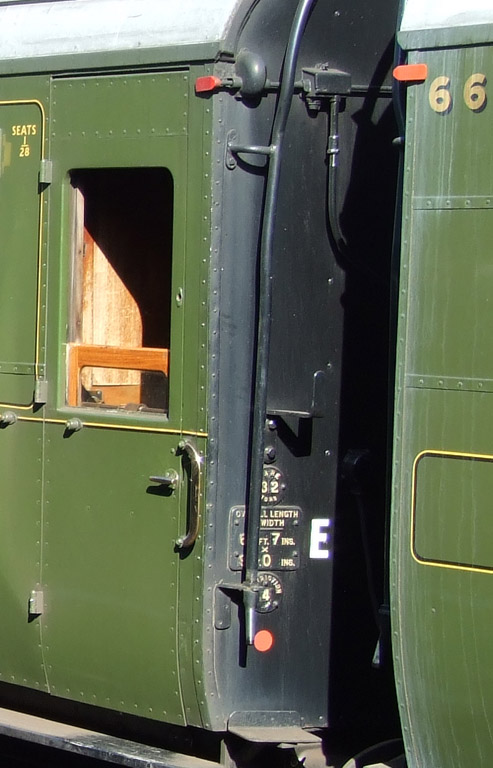

Left - SR Maunsell Brake Composite No.6686 of 1935. Right - SR Maunsell Open Third No.1309 of 1935.

Plates on Maunsell 1336 - 31 Aug 2009 - Richard Salmon Plates on Bulleid 2526 - 29 Aug 2009 - Richard Salmon

Plates on Bulleid 4279 - 29 Aug 2009 - Richard Salmon

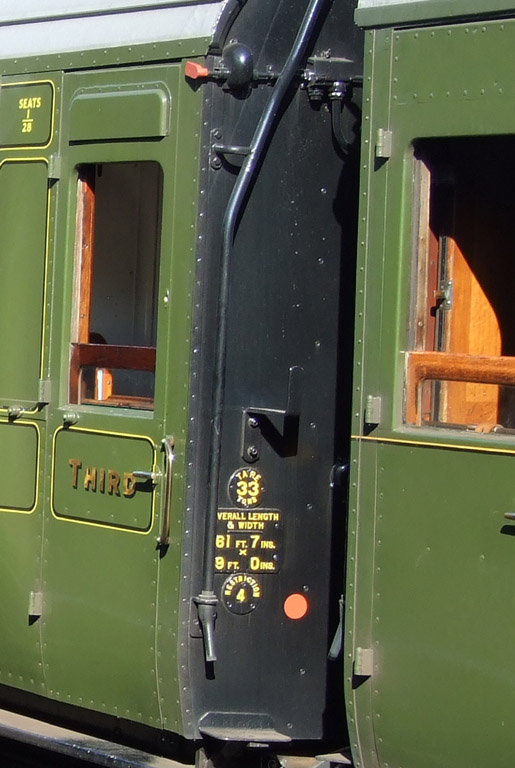

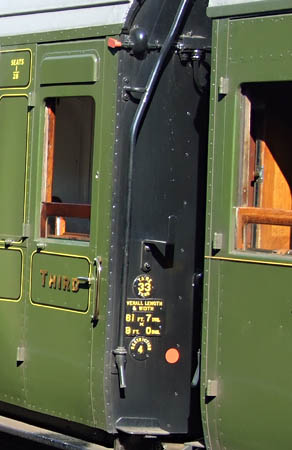

Above Left - SR Maunsell Droplight Open Third No.1336 of 1933.

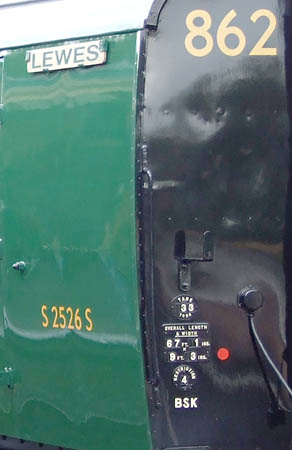

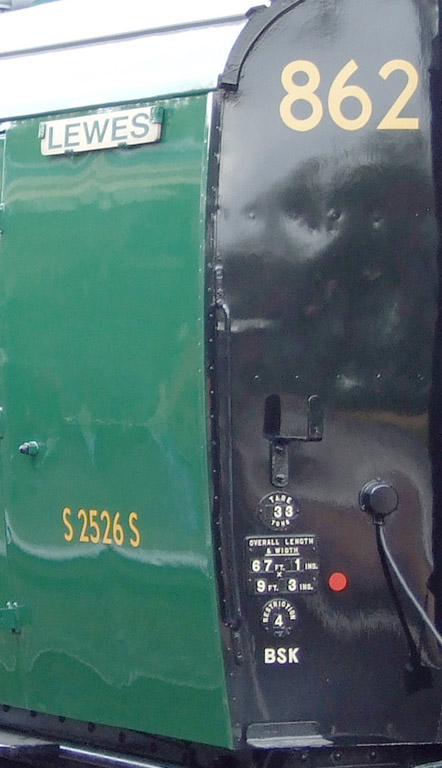

Above Right - SR Bulleid-designed (BR Built) Brake Third/Second No.2526 of 1951.

Right - SR Bulleid-designed, Birmingham Railway Carriage & Wagon Co. built No.4279 of 1949. Note the oval tare plate showing 32 1/5 Tons.

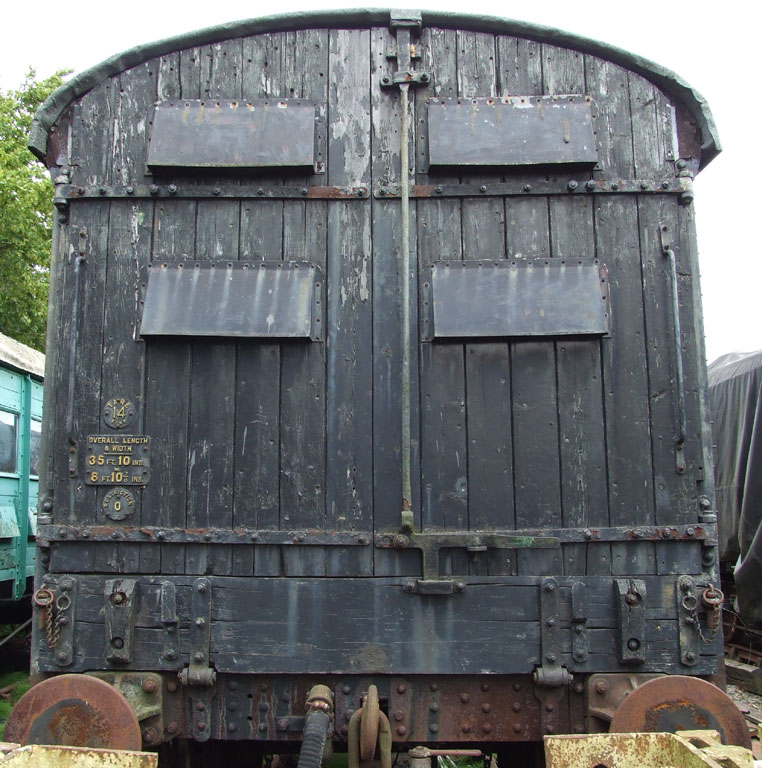

Plates on SR CCT 2276 - 1 Aug 2009 - Richard Salmon End of SR CCT 2276 - 1 Aug 2009 - Richard Salmon

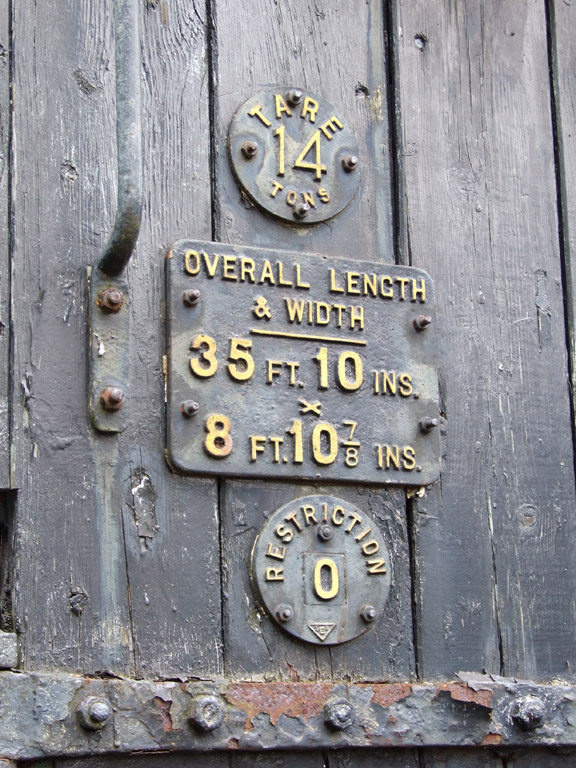

Plates on the end of SR 1929-built CCT (CovCar) 4-wheeled van.
